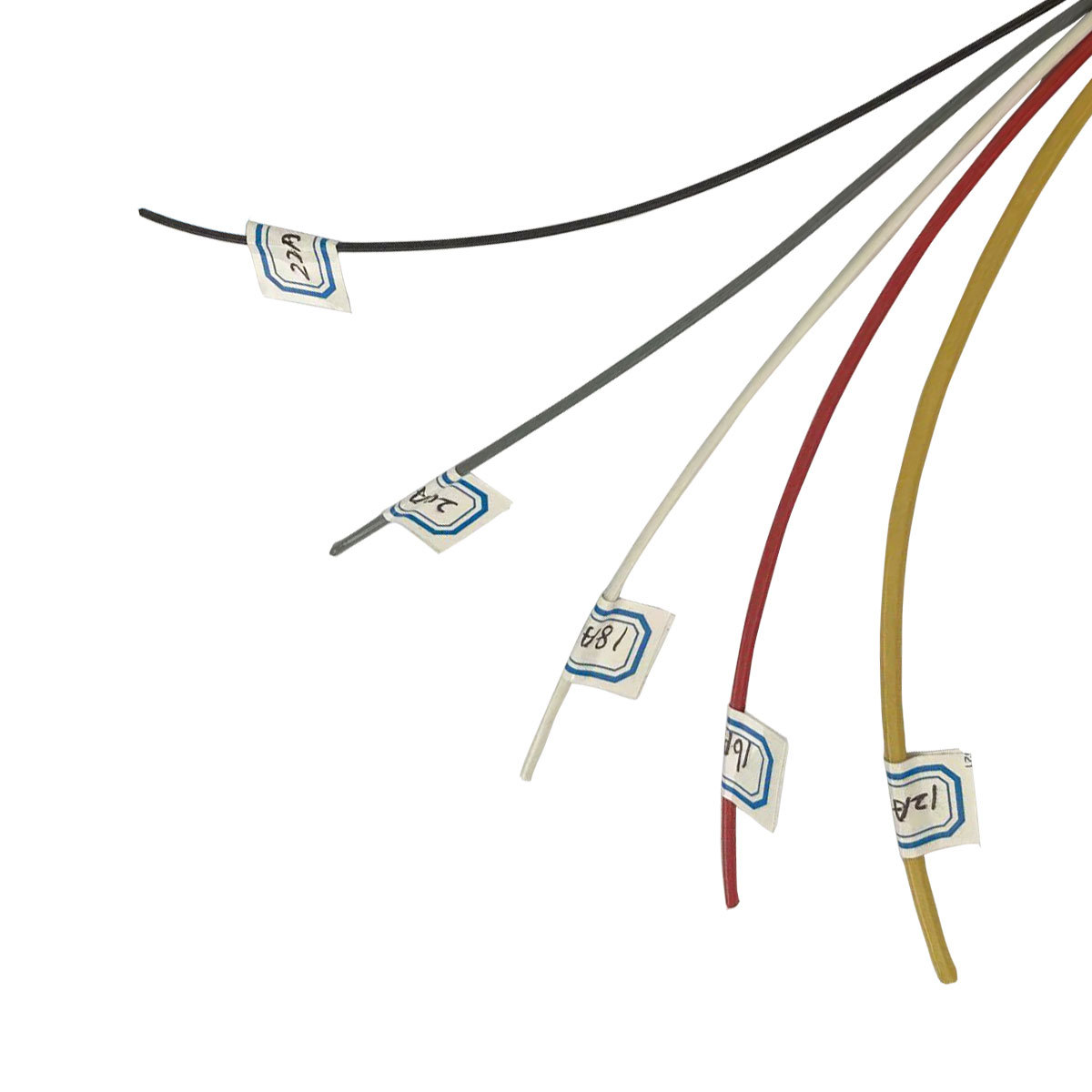

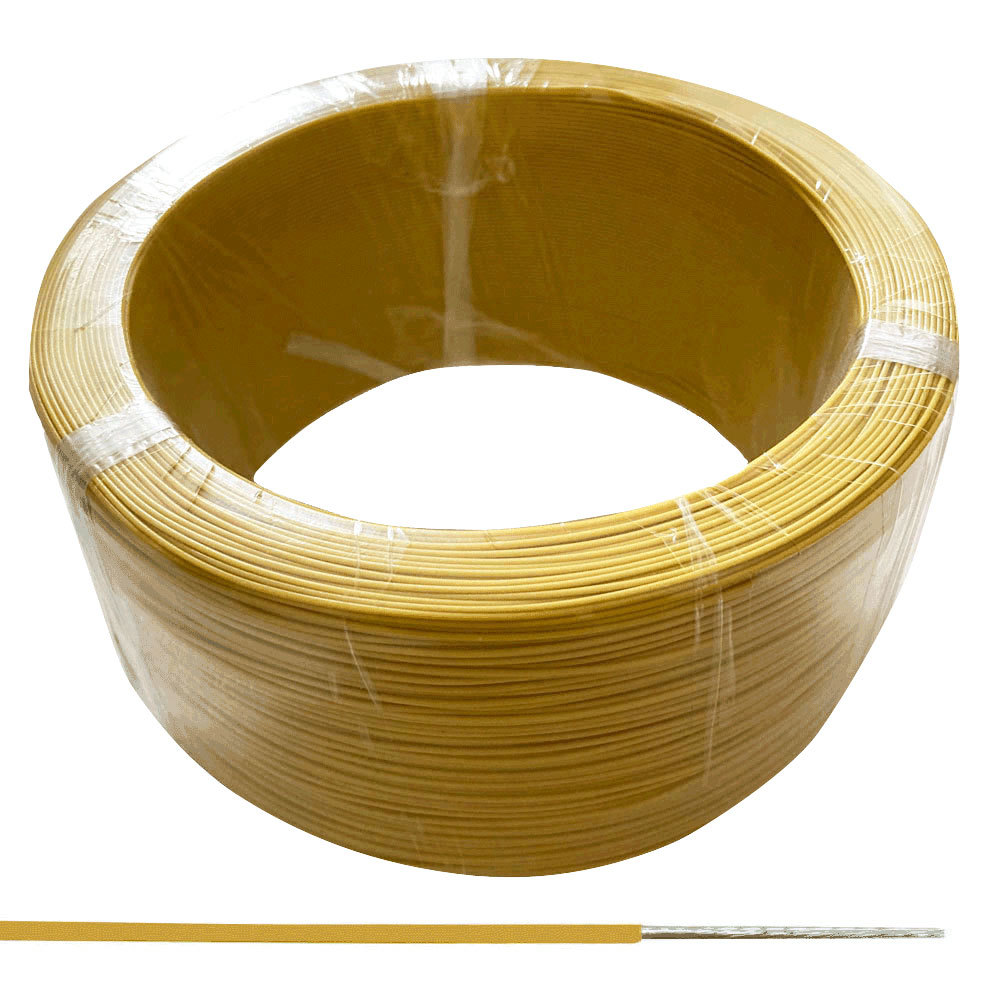

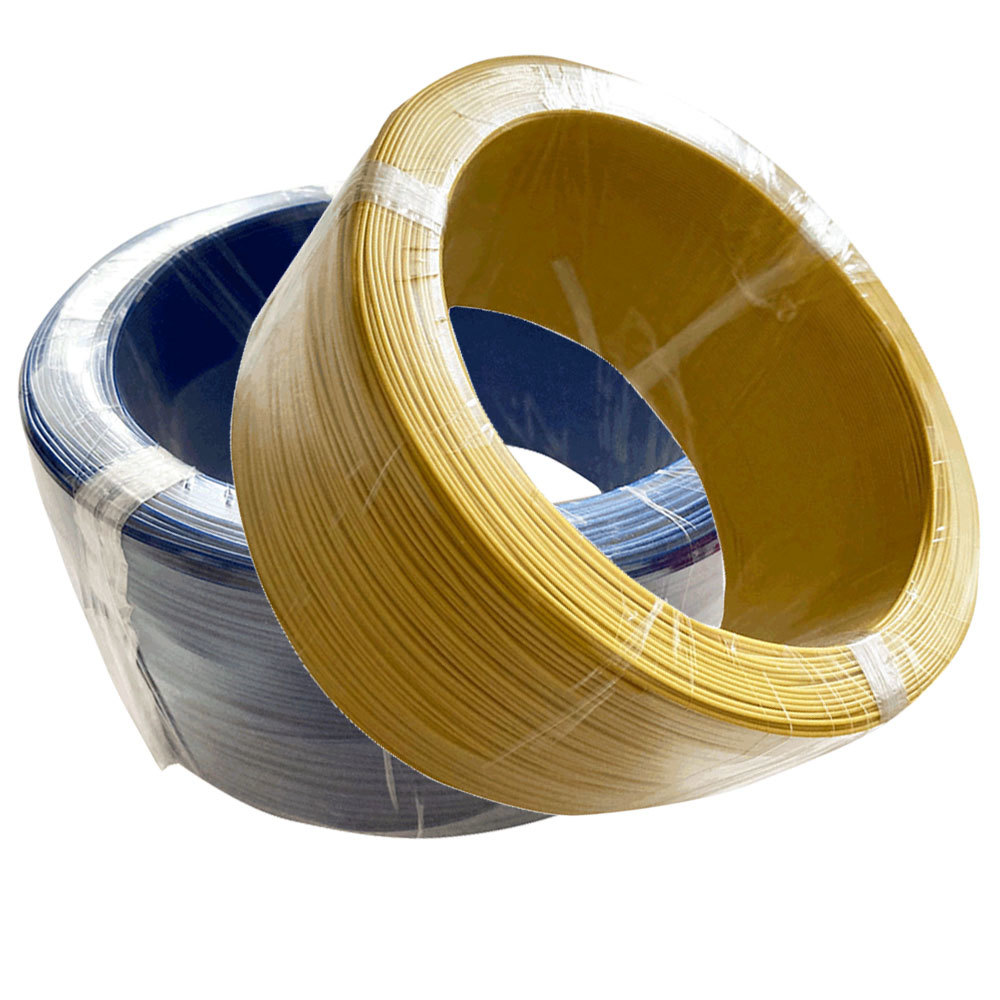

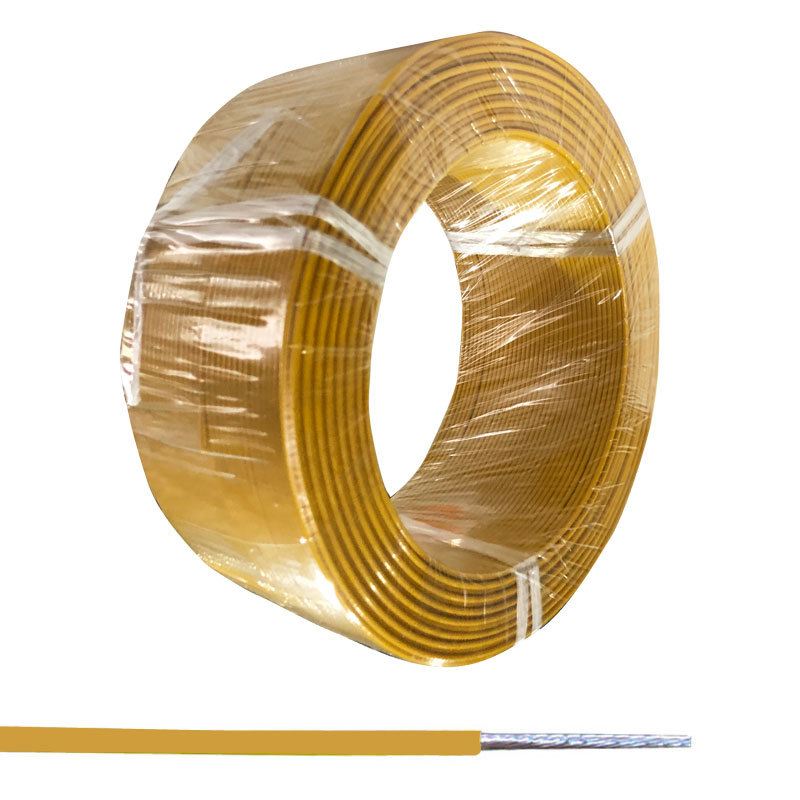

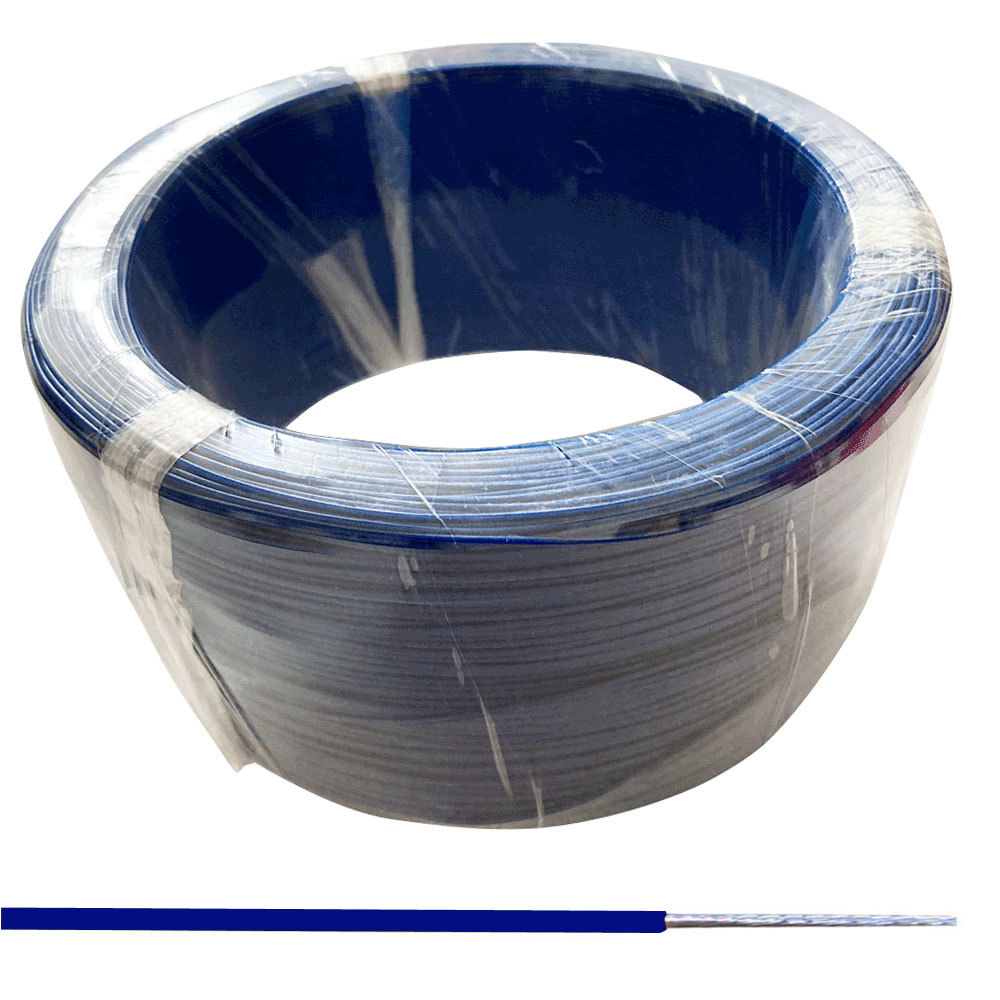

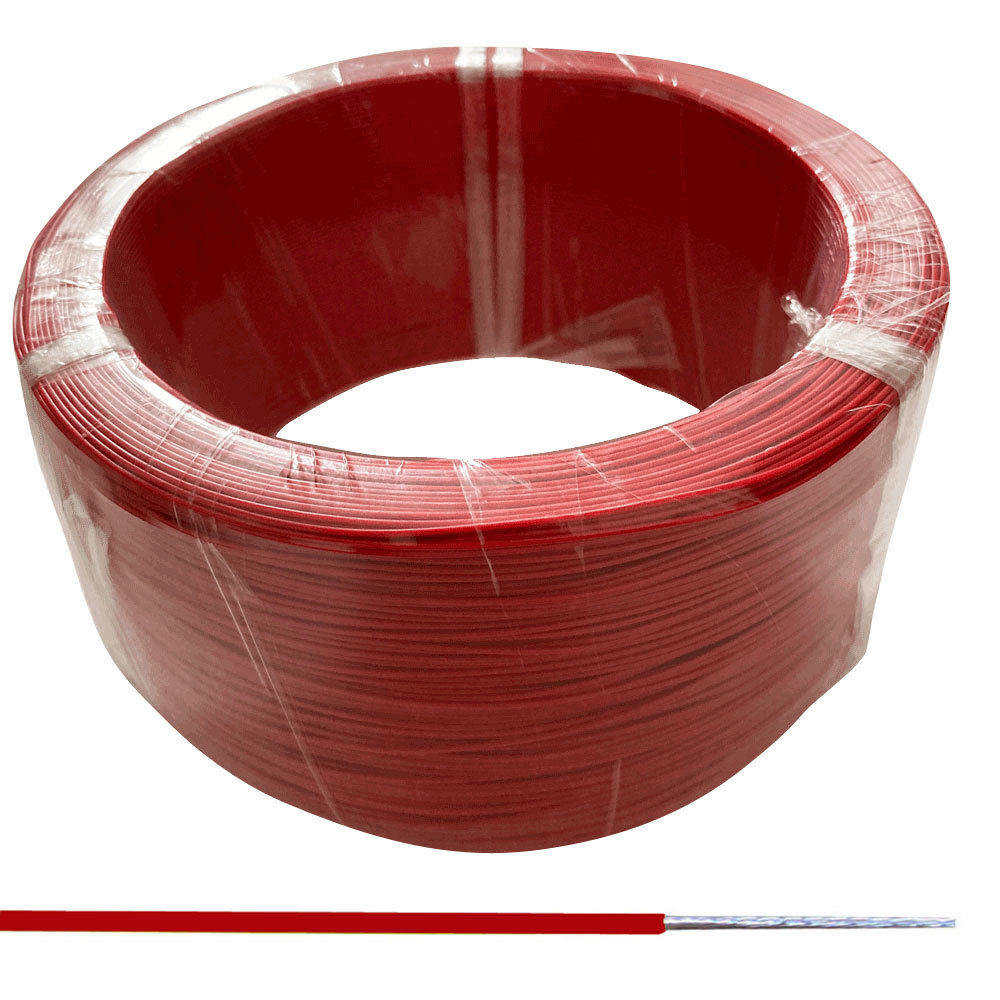

Tinned Copper 24 AWG High Temperature Tefzel Wire
ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail to deliver the required level of protection.
Our ETFE Insulated Wire withstands extreme temperatures ranging from -200°C to 150°C without compromising structural integrity or electrical performance. This makes it suitable for aerospace, automotive, and industrial manufacturing applications where exposure to harsh operating conditions is common.
In addition to thermal resilience, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments. It is engineered to meet stringent safety standards and delivers consistent electrical performance with low dielectric constant and high dielectric strength.
Key Features
- Small diameter saves space
- Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
- Excellent low temperature characteristics
- Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Construction and Specifications
| Conductor Materials |
Tinned Plated Copper |
| Conductor Type |
Stranded |
| Number Core |
Single Core or Multiple Cores |
| Insulation |
ETFE, FEP, PTFE, PFA Insulated |
| Rated Voltage |
300V AC |
| Rated Temperature |
-65°C to +150/200°C |
| Color |
Red, White, Black, Blue, Green, Yellow, Brown, Yellow/Green |
AWG Specifications
| AWG |
No. of Conductor |
Diameter (mm) |
Thickness of Insulator (mm) |
Over Diameter (mm) |
| 32 awg |
7/0.08 |
0.24 |
0.2 |
0.4 |
| 30 awg |
1/0.254 |
0.254 |
0.15 |
0.55 |
| 28 awg |
1/0.32 |
0.32 |
0.18 |
0.67 |
| 26 awg |
7/0.16 |
0.48 |
0.23 |
0.92 |
| 26 awg |
19/0.1 |
0.5 |
0.23 |
0.96 |
| 24 awg |
7/0.203 |
0.61 |
0.23 |
1.07 |
| 24 awg |
19/0.12 |
0.6 |
0.23 |
1.06 |
| 22 awg |
7/0.254 |
0.76 |
0.23 |
1.22 |
| 22 awg |
19/0.16 |
0.8 |
0.23 |
1.26 |
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive offers for global customers.
Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more. We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes to customize cables according to customer requirements.
Exhibition & Customer Visits
We have participated in major international exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.
As a professional wire and cable manufacturer, we have exported products to the US, Venezuela, India, Vietnam, Bengal, Africa and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, who are long-time partners of our company.
Certifications & Honors
- Participated in China manned space flight project development and construction for Shenzhou 7
- Carried out project development, construction and test tasks for first manned flight
- Collaborated with China Academy of Launch Vehicle Technology for the "Arrow of God" project
Why Choose Us
We are a stable wire and cable supplier for China's aerospace and military sectors. Customer satisfaction is our primary aim.
Our Services
- Free technical consultation service before, during, and after sales
- Free sample and design services
- Special monitoring and detection during manufacturing process
- 100% free insurance for internal transportation
- OEM & ODM welcome
- Small orders accepted
Packing & Shipping
We use fast international express delivery services including DHL, UPS, FEDEX, TNT, and EMS. We can also ship by air, sea, or land transportation according to your requirements.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
What is your company's strengths?
We are a stable wire and cable supplier of China's aerospace and military with 21 years experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive offers.
How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
What's the warranty of your products?
We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
How can I get the samples?
We can make sample orders for you. If sample quantity is small and available in stock, we can provide them free of charge with freight absorbed by your side.
